Solenoid Valve for Automobile Application

Place of Origin: Zhejiang,China (Mainland)
Power: Solenoid
Standard or Nonstandard: Standard
Pressure: Medium Pressure
Structure: Pilot
Material: Casting
Temperature of Media: Medium Temperature
Media: Water
Brand Name: RFS
Certificate: CE,
Export Area: Worldwide
standard: ISO 5211,TS16949
Media: Natural gas ,Air
Working type: Pilot-operated
Pattern: Normally Close
Orifice: 15mm
Connection Port: 3/8 ,G/PT/NPT
Working Pressure: 0.05-1.6Mpa
Rated Voltage: AC/DC24V-220V

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0 USDProduction Capacity:Over 10,000 pcs
Trade Term:FOB,CFR,CIF,EXWPacking:By cartons, by pallets
Payment Terms:L/C, WU, T/TDelivery Date:10-20DAYS
Min. Order:100 Piece/Pieces
Means of Transport:Land, Ocean, Air

E1645103

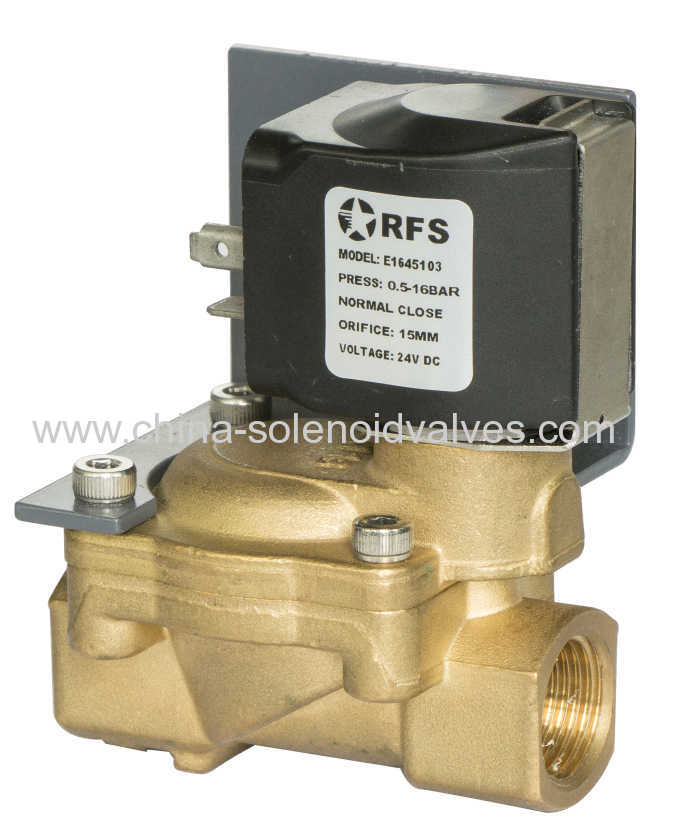

Xingyu Electron has got TS16949 Certification ,E1645103 is Pilot-operated Solenoid Valve for automobile ,Which is regular solenoid valve but with customized bracket ,Can instal much easier.

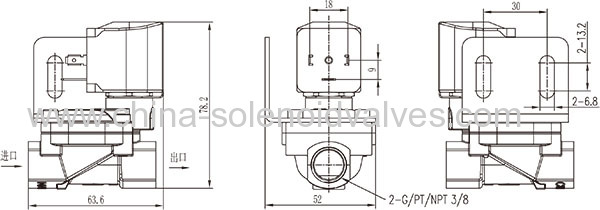

Drawing



Technical data

ModelE1645103
MediaNatural gas ,Air
Working typePilot-operated
PatternNormally Close
Orifice15mm
Connection Port3/8 ,G/PT/NPT
Working Pressure0.05-1.6Mpa
Working Temp. -10 ~ +80ºC
Rated VoltageAC/DC24V-220V
Protection ClassIP65
Insulation ClassH Class
Valve Body MaterialBRASS
Seal MaterialHNBR


Category: Automotive valves


«
